XERUN XR10 PRO DR

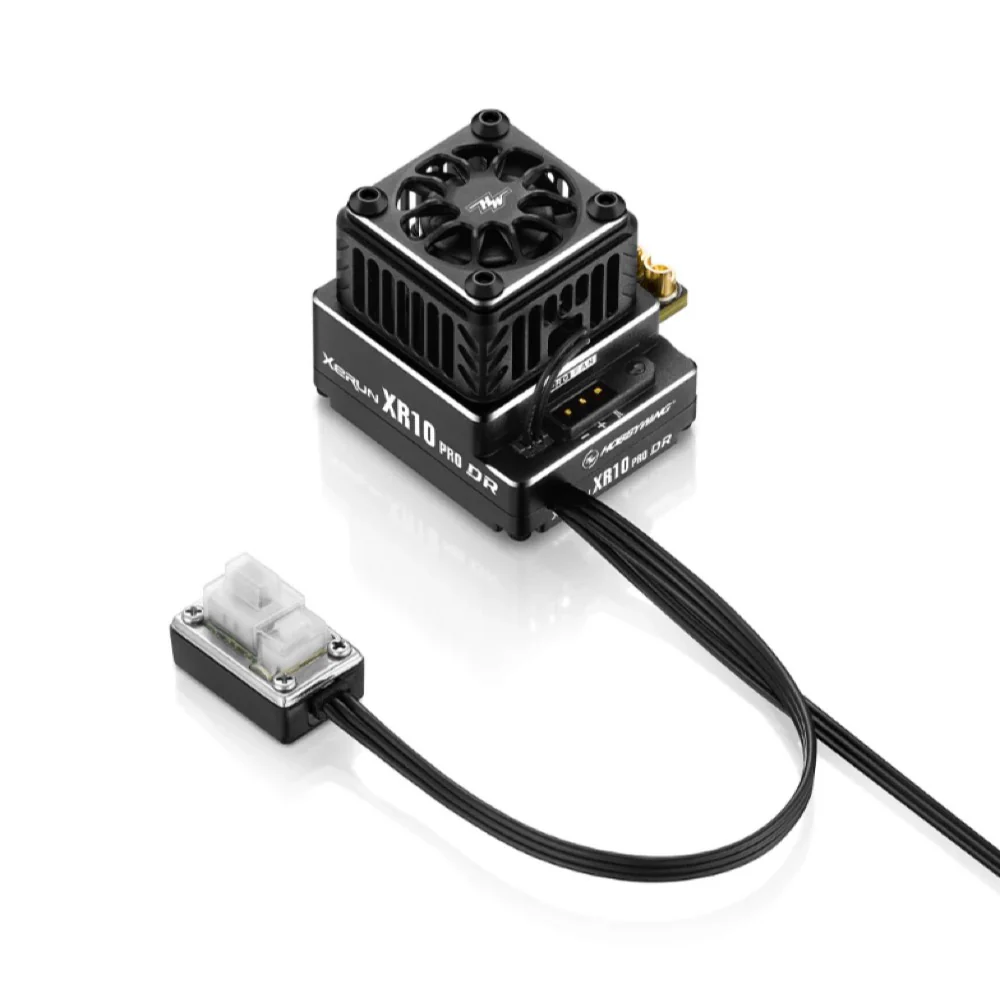

Introducing the Hobbywing ESC XeRun XR10 Pro DR Drag Racing 200A

The XeRun XR10 Pro DR has been designed with software specially optimized for drag racing. racing. Its responsiveness is unrivalled, especially when the acceleration level is set to 30, offering an ultra-precise racing experience. This advanced software allows fine-tuningadjustments, guaranteeing quick response time and perfect power management.

Features

• Drag Racing Acceleration Tool - XeRun XR10 PRO DR uses a 32- bit M4 high-performance microprocessor and is optimized based on the software core of the flagship competition product XeRun XR10 PRO G2S to provide better control performance for Drag Racing .
• When the throttle acceleration is set to the maximum level 30 - Compared with XERUN XR10 PRO G2S,the response time of ESC is shortened by 1 times
  Note: The response time is affected by the motor characteristics, so the specific time shall be subject to actual measurement!
• 9900uF super large capacitor - The ESC comes standard with a 9900uF ultra-large capacitor, which is nearly 9 times the standard capacitor of the XERUN XR10 PRO G2S , ensuring that the ESC voltage remains stable during high-power output. Capacitance value increased by nearly 9 times
• Frameless fan - Efficient heat dissipation The patented frameless fan can deliver high-flow air from the side of the fan . In addition, the internal power board is covered with a copper thermal bus bar, which can quickly transfer internal heat to the integrated shell heat sink, forming a highly reliable cooling system to ensure that the ESC is always in a good heat dissipation state.
• External Bluetooth OTA - After the ESC is connected to the OTA Bluetooth module, a wireless connection can be established between the mobile phone and the ESC, and the mobile phone App can be used to set parameters, read data, upgrade firmware, etc., which is simple and convenient.
• Real-time data storage, easy to grasp the power status - Connect the ESC to the OTA Bluetooth module, and use the mobile phone APP to view real-time data such as throttle, voltage, temperature, speed, etc. You can also view historical record data (curve graph) after the operation, and easily obtain the operating status of the ESC and motor .

Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Contents

• 1x ESC Hobbywing XeRun XR10 Pro DR
• 1x User manual (English)
