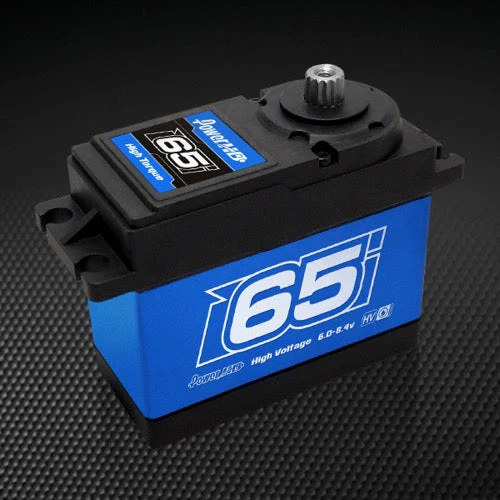

Power HD WH-65KG Standard DC Motor Copper & Steel Gear Waterproof Servo

The Power HD WH-65KG (part HD-WH-65KG) is a high-torque HV servo designed for demanding RC applications. Delivering up to 65.0 kg-cm at 8.4V with a swift 0.15s transit speed, it combines copper & steel gears with dual ball bearings for smooth, reliable performance. Operating from 6.0–8.4V DC, this unit balances sheer holding power with dependable control and durability.

Specification

• Torque
  • (6.0V): 55.0 kg-cm / ( 763.8 oz/in)
  • (7.4V): 60.0 kg-cm / ( 833.2 oz/in)
  • (8.4V): 65.0 kg-cm / ( 902.7 oz/in)
• Speed: 0.19 sec (6.0V)│0.17sec (7.4V)│0.15 sec (8.4V)
• Operating Voltage：6.0 ~ 8.4 DC Volts
• Weight: 200.0 g (7.05 oz)
• Bearing Type：Ball Bearing x 2
• Motor Type：DC Motor
• Gear Type：Copper & Steel
• Operating Temperature：-10℃~60℃
• Working frequency：1520μs / 333hz
• Size：65.8x30.0x55.6mm (2.59x1.18x2.19 in)
