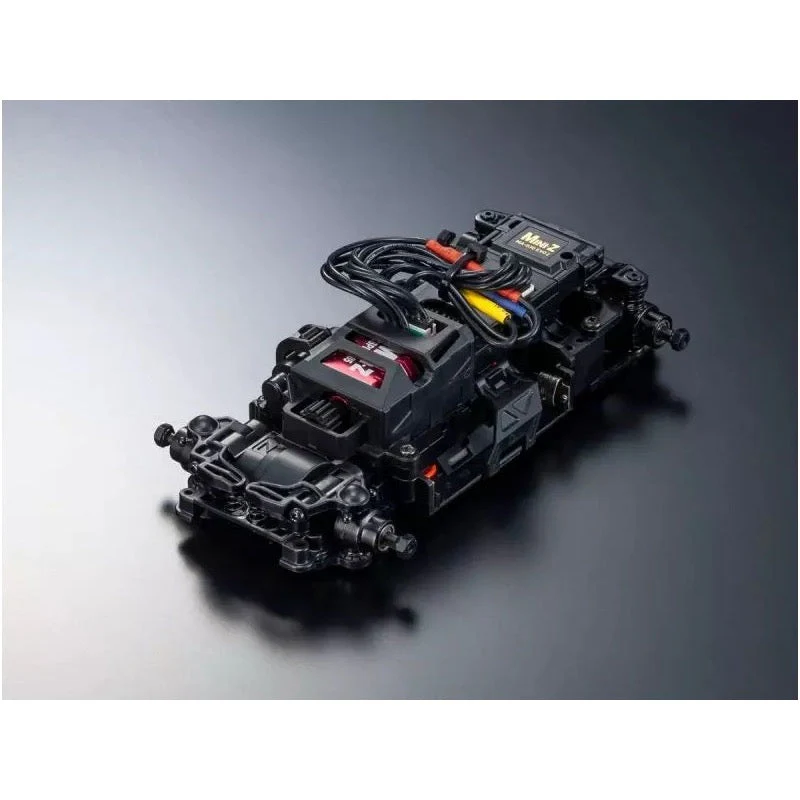

Kyosho Mini-Z AWD MA030EVO2 Chassis Set

The compact all-wheel-drive chassis of the MINI-Z AWD series delivers outstanding performance, whether in high-speed grip racing or thrilling drift. Now, the new MA-030EVO2 brings the advanced sensor-equipped brushless motor system from the flagship RWD MR-04EVO2 to the AWD platform.

Like its predecessor, the MA-030EVO2 uses an independent receiver unit design, ensuring broad transmitter compatibility. The speed controller has been completely redesigned for finer motor control, while the sensored brushless motor dramatically improves low-speed response for smoother, more precise handling.

Further refinements include a newly designed motor cover that increases body compatibility. By adding a separately sold receiver unit, drivers can link the EVO2 chassis with their own transmitter. Supported models include KYOSHO (KT-531P), KO (EX-2EX-RR / EX-NEXT), Futaba (T10PX / T7PX / T7XC / T4PM / T4PM+ / T6PV), and Flysky (Noble NB4 / NB4+ / NB4 PRO+).

As before, a dedicated CPU enhances servo control for sharper steering feel, and switching to brushed motors is still possible via I.C.S. Manager. With its sensor-equipped brushless system, the MA-030EVO2 takes MINI-Z AWD performance to the next level, delivering an even more refined and exciting driving experience.

Features

• MA-030EVO2 chassis is an AWD version based on the MA-03F Mini-Z FWD chassis.

• Chassis set with separate ESC and receiver unit.

• Specific receiver units enable use with various brand transmitters.

• Comes standard with the KYOSHO SPEED HOUSE XSPEED 85 sensored brushless motor (KV8500).

• In addition to setting management via the I.C.S. Manager, you can also choose between a brushless motor and a brushed motor.

• Independent CPU control improves internal processing speed, enabling precision control.

• Full ball-bearing setup reduces drivetrain loss throughout.

• Wheelbase supports both L (94 mm) and LL (98 mm) lengths. However, when using the optional rear double-wishbone suspension set (sold separately: MDW100), only the LL (98 mm) setting is compatible.

• Compatible with optional parts for the MA-03F chassis.

Mountable Body

• MAZDA Demio XD Touring(MZP442)

• Toyota PRIUS PHV(MZP443)

• Honda CIVIC Type R(MZP445)

• SUBARU WRX STI(MZP440)

• NISSAN GT-R R35(MZP417)

• NISSAN SKYLINE GT-R R32(MZP437)

• NISSAN SKYLINE GT-R R34(MZP427）

• AUDI R8 LMS(MZP444)

• NISSAN SKYLINE 2000GT-R KPGC10(MZP466)

• NISSAN SKYLINE GT-R R33(MZP468)

• CHEVROLET CAMARO ZL1(MZP242)

• SUBARU Impreza WRC 2008(MZP471)

• Toyota SPRINTER TRUENO AE86(MZP479)

• Toyota LEVIN AE86(MZP473)

• Toyota GR SUPRA(MZP450)

• Toyota GR SUPRA TRD(MZP452)

Available with Wheel Change

• McLaren 12C GT3(MZP226)

• Lamborghini Murcirlago LP670-4SV(MZP215)

• McLaren F1 GTR(MZP237)　※DWS Not Compatible

• AUDI R8 LMS 2015/2016(MZP234)

• HONDA NSX(MZP233)

• McLaren P1 GTR(MZP235)　※DWS Not Compatible

• McLaren F1 GTR(MZP232)　※DWS Not Compatible

• CHEVROLET CORVETTE C8.R(MZP244)

• McLaren 720S GT3(MZP232)　※DWS Not Compatible(Mountable with Partial
• Diffuser Modification)

• TOYOTA 86(MZP155)

• HONDA NSX Concept-GT 2014(MZP249)

Contents

• Factory-assembled chassis equipped with EVO main unit installed

• Pinion Gears (15T, 17T, 19T, 21T)

• Pinion gear removal tool

• Spare wheel nuts

• Wheel wrench

• Center shaft for L wheelbase

• Spur gears (27T / 29T / 31T)

Requires

• EVO2 compatible transmitter

• EVO2 compatible receiver unit

• Auto Scale Collection (body, wheels and tires)

• AAA-size alkaline batteries x 4 for chassis.

• AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for transmitter
