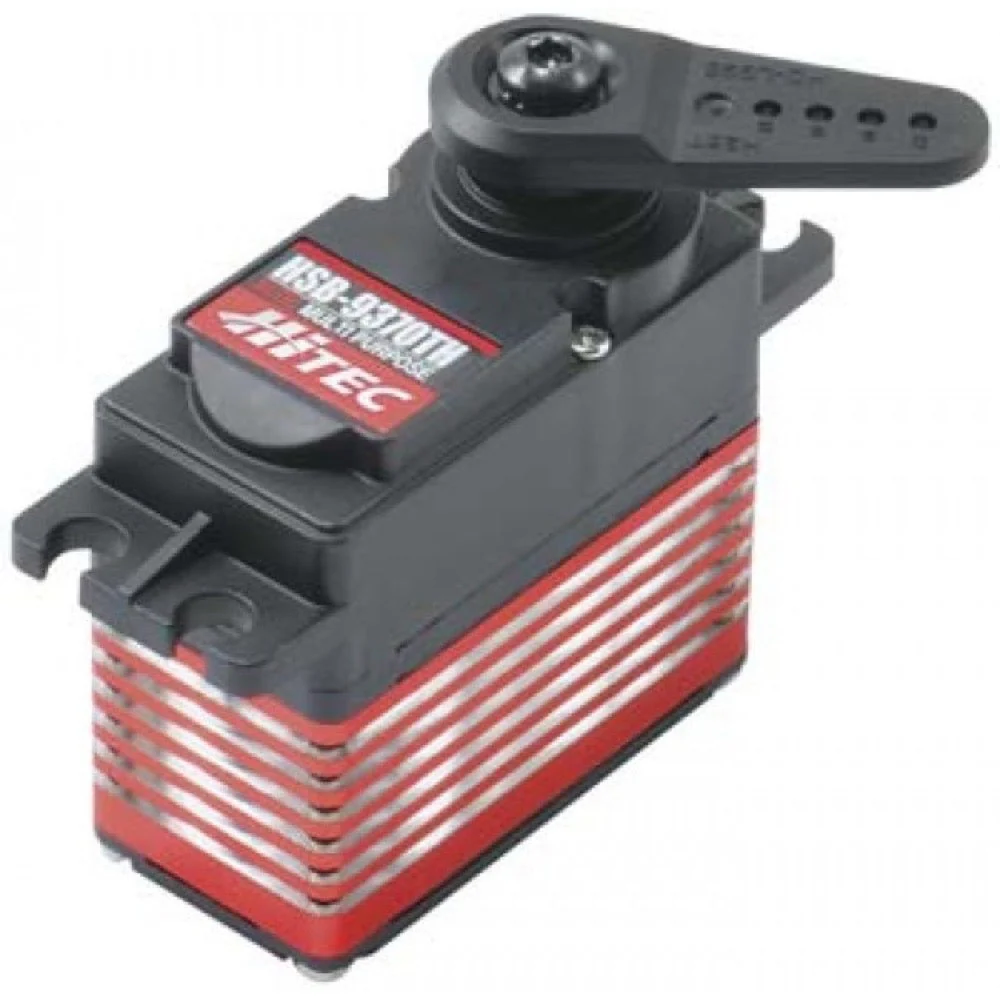

Hitec HRC39370 HSB-9370TH Digital HV Brushless High Torque Servo

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers.

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Data Save / Load
• Program Reset (From File)

Features

• Programmable 12Bit PWM Digital Amplifier
• Custom Long Life Brushless Motor
• 1M Cycle Long Life Potentiometer
• Constant Output Torque
• Wide Operating Voltage (5 ~ 9 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• Dust Resistant and Splash Proof Case
• 25Tooth Output Spline
• Hybrid Nylon Reinforced Plastic and Aluminum Case
• Low Power Consumption

Specs

• Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
• Speed (Second @ 60°): 0.12 ~ 0.10
• Maximum Torque Range oz. / in.: 347
• Maximum Torque Range kg. / cm.: 25
• Current Draw at Idle: 27 mA
• No Load Operating Current Draw: 250 mA
• Stall Current Draw: 2,100 mA
• Dead Band Width: 1 µs
• Dimensions (Metric): 40.0 x 20.0 x 38.0
• Weight (Gram): 68
• Circuit Type: EBL Digital
• Motor Type: NeuCastle Brushless
• Gear Material: Titanium
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): H25T
• Case Material: Plastic / Aluminum
• Dust / Water Resistance: Splash Proof
• Connector Gauge (AWG) / Strand Count: 20 / 80
