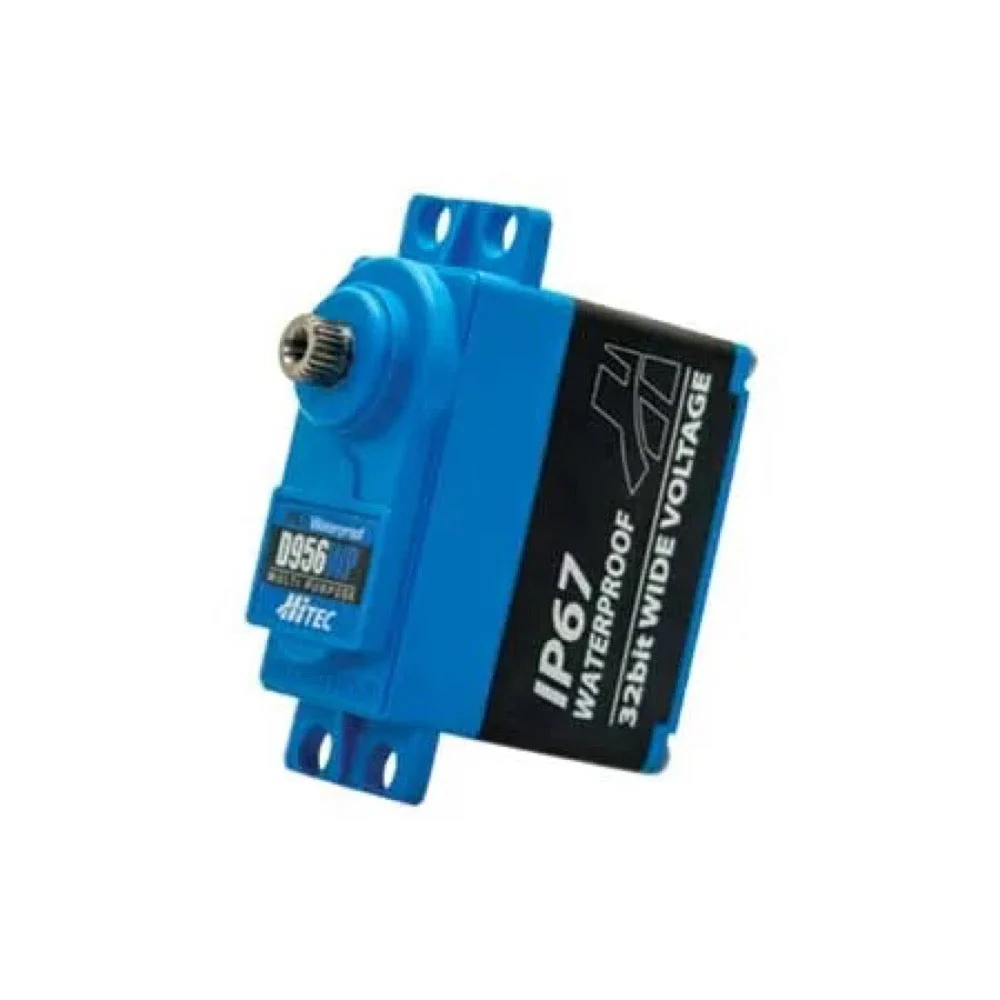

Hitec HRC36956 D956WP D Series Multi Purpose Waterproof Servo

Hitec D956WP D Series Multi Purpose Waterproof Servo

Features

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminium Heat Sink Centre Case
• Water Resistant and Waterproof Proof Case

Specs

• Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
• Speed (Second @ 60°): 0.19 ~ 0.12
• Maximum Torque Range oz. / in.: 251 ~ 405
• Maximum Torque Range kg. / cm.: 18.0 ~ 29.0
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 500 mA
• Stall Current Draw: 5,200 mA
• Dead Band Width:" 1 µs
• Dimensions (Inches): 1.57 x 0.78 x 1.46
• Dimensions (Metric): 40.0 x 20.0 x 37.0
• Weight (Ounces): 2.4
• Weight (Gram): 68
• Circuit Type: 32bit Programable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: MK 1st Gear & 3 Steel Alloy Gears
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): H25T
• Case Material: Plastic / Aluminum
• Dust / Water Resistance: IP67 Rating
• Connector Gauge (AWG) / Strand Count: 20 / 80
• Sport Plane: 30 - 40%
• Sailplane: 2 meters and up
• 3D Performance: 30 - 40%
• Scale: 30 - 40%
• On Road: 1/8th
• Monster Truck: 1/8th
• Buggies: 1/8th
• Truggies: 1/8th
• Short Course / Truck: 1/8th
• Crawlers: 1/8th
• Sail Boat: = >1M & Scale
