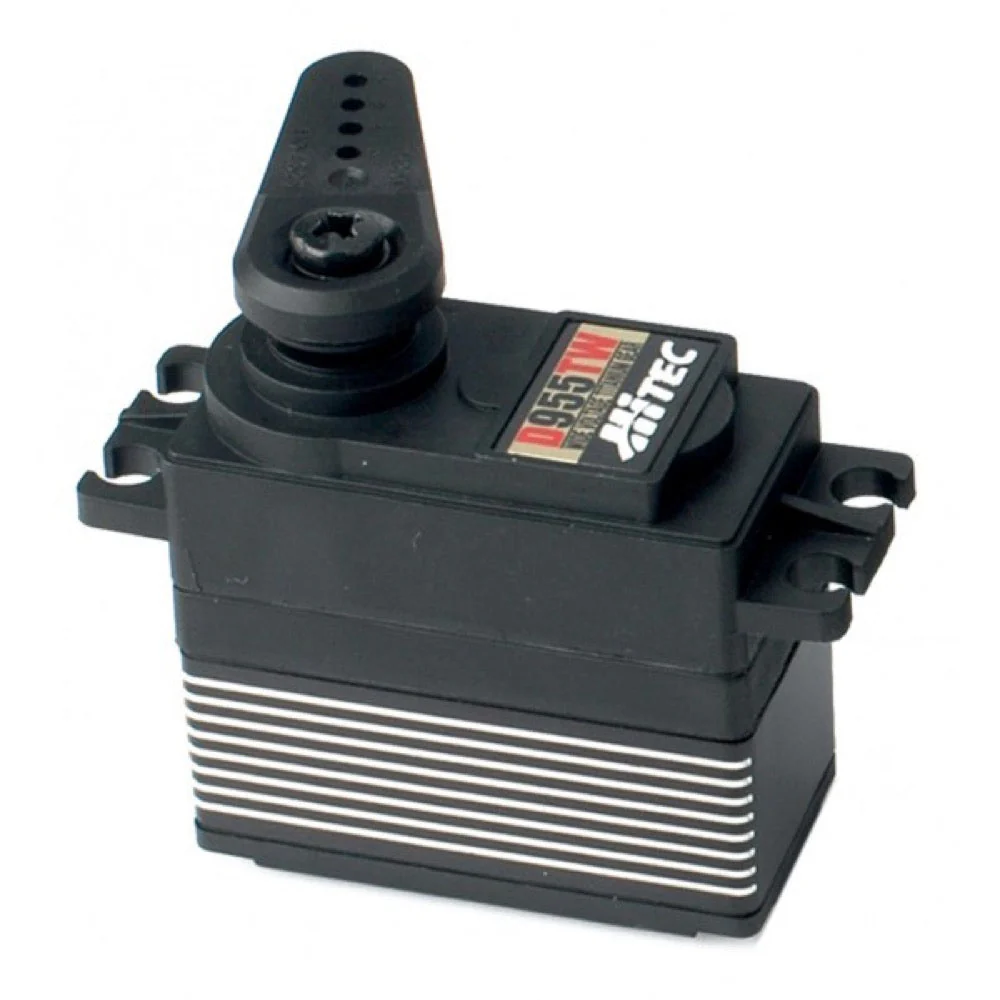

Hitec HRC36955 D955TW Digital HV High Torque Servo

HITEC HS-D955TW Ultra Response, Wide Voltage, Ultra Torque, Splash Proof, Servo with Titanium Alloy gears.

Applications

• Aircraft 20~120 Class
• All EP 600~700 & GP 30~90 Class Helicopters
• 1/10~1/4 Scale Car Steering & Throttle
• Nitro & Gasoline Boats
• 32bit MCU/12bit ADC

Hitec's new 32bit ADC allow the best ever response in the hobby industry. You can also udtilize Hitec's PC interface to customize your D-series servos for maximum performance (EPA, Resolution set, Fail safe, Soft Start), in a multitude of applications.

Wide Voltage

Hitec's First Wide Voltage capability supports all types of receiver batteries, from 4.8 to 7.4 volts.

Features

• Operation Voltage: DC 3.5~8.4V
• Wide Voltage, Ultra Torque Digital Servo
• Programmable Digital Amplifier with MOSFET Drive
• Durable Titanium Alloy Gears with Dual Ball Bearing
• Ultra Hardness Gear Shaft with 3 Axial Metal Bushing
• Heat Sink for Motor
• Water & Dust Resistance (Splash Proof)
• H25T 25 tooth spline horn Gear
• 3mm Horn Screw (' ' & HEX Socket Screw Included)

Specs

• 4.8V Torque: 18.0kg.cm
• 4.8V Speed: 0.19 sec/60º
• 6.0V Torque: 24.0kg.cm
• 6.0V Speed: 0.15sec/60º
• 7.4V Torque: 29.0kg.cm
• 7.4V Speed: 0.12sec/60º
• Dimensions: 40 x 20 x 37 mm
• Weight: 66g
