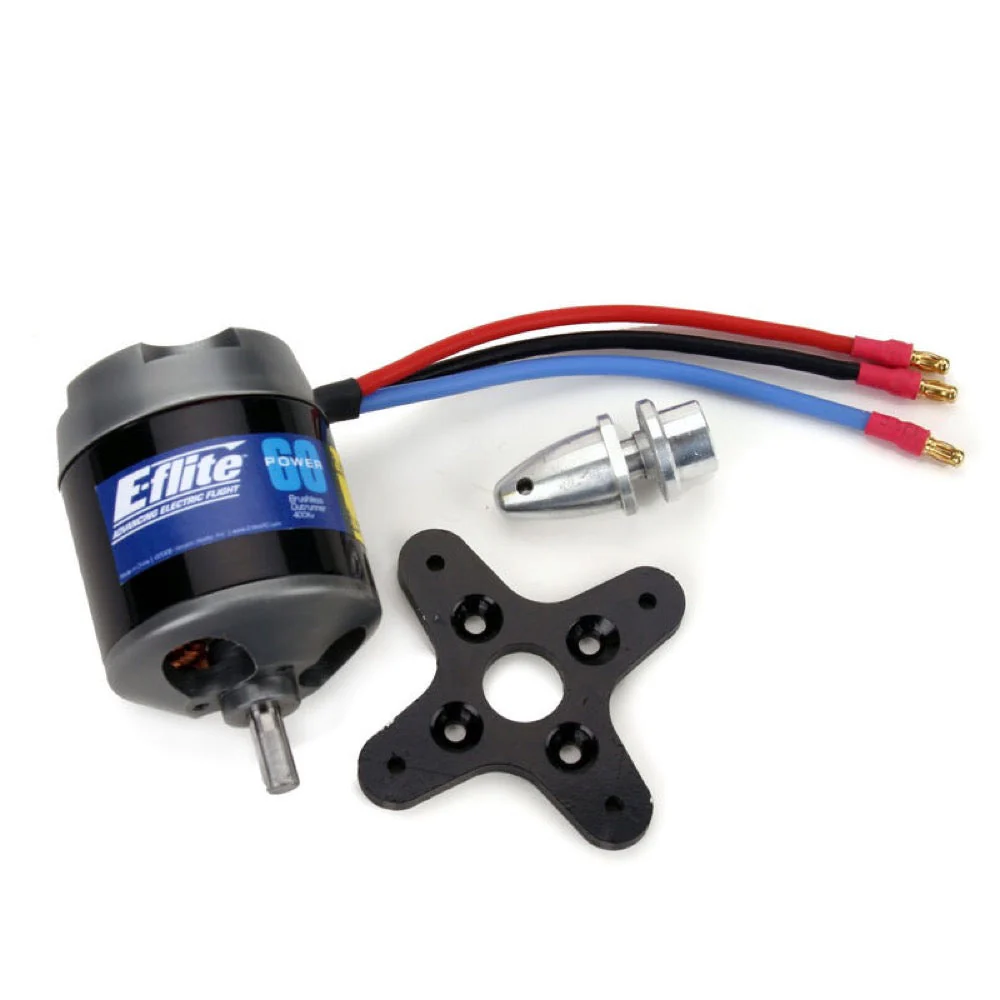

E-Flite EFLM4060A Power 60 Brushless Outrunner Motor 400 Rpm/V

Product image 1

E-Flite EFLM4060A Power 60 Brushless Outrunner Motor 400 Rpm/V

The Power 60 is designed to deliver clean and quiet power for 60-size sport and scale airplanes weighing 6 to 10 pounds (2.7–4.5 kg), 46-size 3D airplanes up to 7 pounds (3.2 kg), or models requiring up to 1200 watts of power. It’s an especially good match for Hangar 9 .60-size warbirds like the Corsair 60 (HAN2575), P-47D Thunderbolt 60 (HAN2975), P-40 Warhawk 60 (HAN2850), P-51 Mustang 60 (HAN2375), P-51 Miss America 60 (HAN2775) and .46-size 3D planes such as the Hangar 9 Funtana 40 (HAN1975) or Seagull Harrier 46 (SEA3025).

Features

  • Equivalent to a 60-size glow engine for 6 to 10 lb (2.7 to 4.5 kg) airplanes
  • Ideal for 46-size 3D airplanes up to 7 lb (3.2 kg)
  • Ideal for models requiring up to 1200 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Includes mount, prop adapters and mounting hardware
  • External rotor design—6mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • NOTE: Not recommended to use with E-flite 80-Amp Pro Switch-Mode ESC (EFLA1080B)
  • Quiet, lightweight operation

Requires

  • 80A brushless ESC
  • 5S–7S Li-Po or 16- to 24-cell Ni-MH/Ni-Cd
  • 14x8 to 16x10 prop

Examples of Airplane Setups

NOTE: All data measured at full throttle. Actual performance may vary depending on battery and flight conditions.

Hangar 9 P-51 Miss America (HAN2775)

  • Motor: Power 60
  • ESC: Castle Creations Phoenix 80 (Standard settings with 18V Soft Li-Po cutoff and no brake)
  • APC 15x10E
  • Battery: Thunder Power PRO LITE 6000mAh 6S3P (THP60003S3PPL x2 in series)
  • Flying Weight w/Battery: 8.8 lb

Seagull Harrier 3D 46 (SEA3025)

  • Motor: Power 60
  • ESC: Castle Creations Phoenix 80 (Standard settings with 18V Soft Li-Po cutoff and no brake)
  • Prop: APC 16x8E
  • Battery: Thunder Power PRO LITE 4200mAh 6S2P (THP42003S2PPL x2 in series)
  • Flying Weight w/Battery: 6.4 lb

Expect very strong performance with unlimited vertical and plentiful power for hovering and 3D aerobatics. Average duration is approximately 8 to 15 minutes depending on throttle management.

Specs

  • Adjustable Timing: No
  • Bushing Or Bearing: Bearing
  • Connector Type: 3.5mm Bullet
  • Idle Current (Io): 2.70A @ 10V
  • Motor Design: Outrunner
  • Motor Type: Brushless
  • Outer Diameter: 2 in (50mm)
  • Recommended Prop Range: 14x8 to 16x10
  • RPM/Volt (Kv): 400
  • Shaft Diameter: 6mm (.24 in)
  • Voltage: 18.5 to 28.8
  • Wire Gauge: 14 AWG
