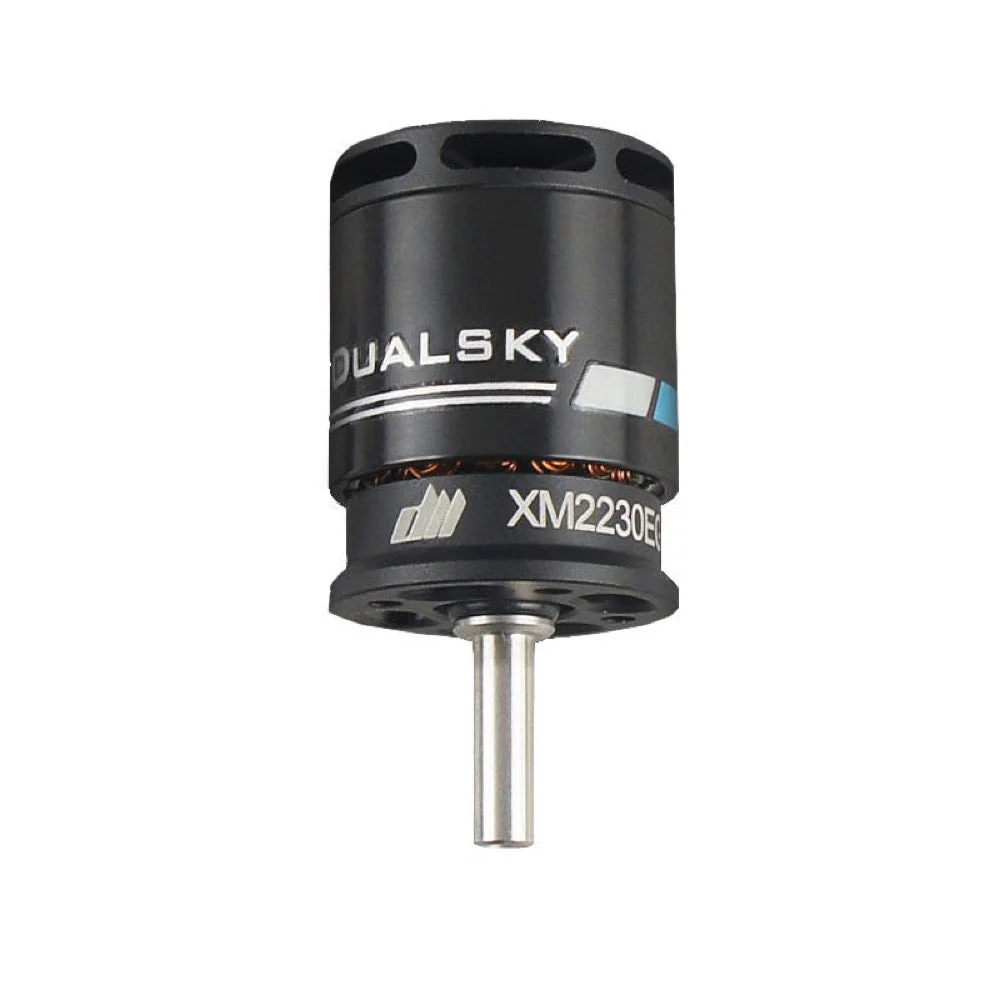

Dualsky DSXM52085 XM2230EG-11 2200kv Brushless Glider Motor

A powerful lightweight, compact brushless motor designed for eRES gliders and F5K models. 22mm diameter, 252 watts output and 42 g weight.

Features

• Lightweight, only 42g!
• Powerful 252 watts
• Slimline 22.4mm
• 4mm hollow shaft and large front bearing
• Uses precision NMB Japanese bearings
• 14 pole arc magnets with Japanese silicon steel laminations
• Uses 220 grade enamelled wire and high temperature epoxy
• Centrifugal fan integrated into rear motor cover
• Suitable for 2-3S operation
• 9x5 to 10x6 on 2S

Specification

• RPM / V: 2200
• Weight: 42 g
• Diameter: 22.4 mm
• Length: 29.4 mm
• Diameter of shaft: 4 mm
• Pitch of holes: 16 / 16
• Input connectors: GC2.0 3 Pairs
• Slots & poles: 12N14P
• Io @ 10V: 1.70 A
• Resistance (Ri) (mOhm): 45
• No of cells: 2 - 3
• Max efficiency current: 17 A
• Max burst current (15S): 34 A
• Max Power (15S): 252 A
• Torque: 125
• Recommended ESC: XC-33U-Lite 15o (Middle)
• Propeller: 2S: 9x5, 9x6, GM10x6
• Applications: F5K/RES
