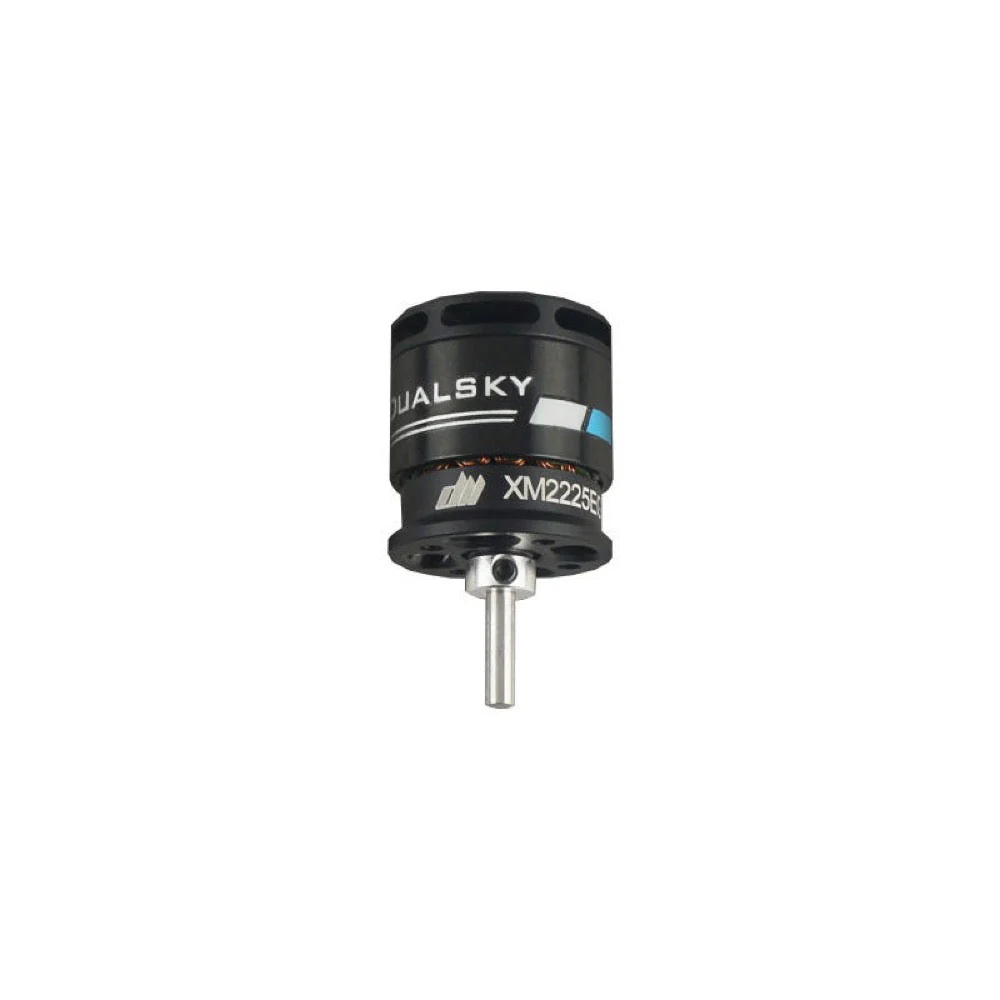

Dualsky DSXM52082 XM2225EG-16 2300kv Brushless Glider Motor

The Dualsky XM2225EG series is designed for small brushless gliders. This EG-16 2300kv motor can be used in F5K/RES models.

Suitable for F5K/RES gliders. Recommended timing is 15 degrees (middle).

Features

• 14 pole arc magnets providing strong direct drive torque
• Precision rotor balancing technology features NMB bearing capable of up to 30000rpm
• Shaft design increases the 'survival rate' of motor when landing

Specification

• KV: 2300
• Weight (g): 32
• Diameter (mm): 22.4
• Length (mm): 24.4
• Shaft diameter (mm): 3
• Slots & poles: 12N14P
• Io@10V (A): 1.1
• Resistance (Ri) (mOhm): 62
• Cells (LiPo): 2S, 3S
• Max. Efficiency current (A): 12
• Max. Burst current (15S) (A): 24
• Max. Power (15S) (W): 178
• Torque (mNM): 125
• Recommended ESC: XC-33U-Lite
• Propeller 2S: 7x4, 8x4, 8x5
• Application: F5K/ RES
• Input Connectors: GC2.0 - 3 pairs
