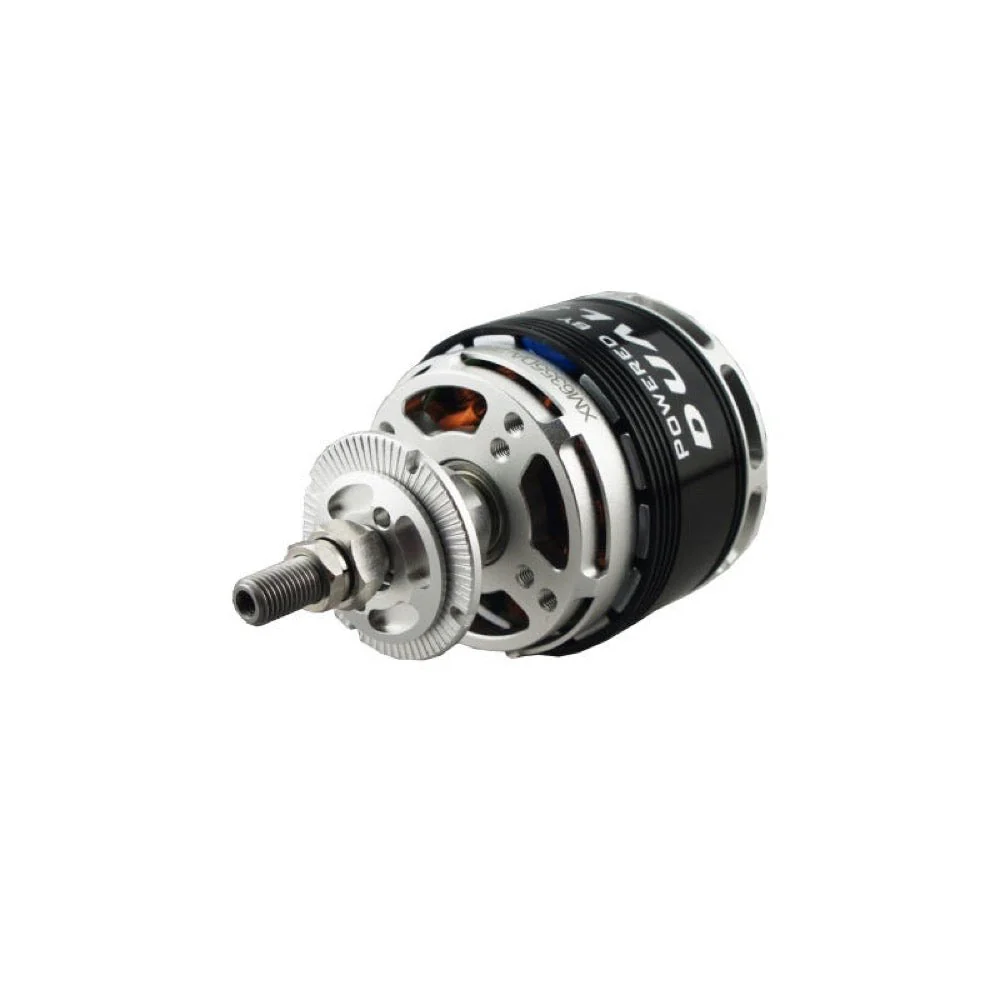

Dualsky DSXM52031 XM6355DA-18 280kv Brushless Motor

This is the new fourth-generation design DA motor by Dualsky. It is the 'standard power' for F3A models, and is also suited to gliders weighing up to 20kg.

Features

• Hollow shaft and lightweight parts overall weight is reduced by 7-10% in comparison to the DA V3.
• New curved magnets torque increases from 12-15% in comparison to the DA V3 motor
• With 3 EZO bearings and precise balanced rotors, the motors can be maintenance-free up to 1000 flights
• Optimised rear support bearing (mount)
• Centrifugal cooling fan

Specification

• Weight (g): 530
• Dimensions of stator (mm): 5325
• Diameter of Shaft (mm): 8
• Mounting holes (mm): See image #2
• Voltage: 32V
• Peak Torque (N*M): 4.14
• KV of Motor (RPM/V): 280
• Io@10V (A): 1.15
• Resistance (Ri)(mOhm): 21.5
• Peak current (A): 97
• Peak power (W): 3104
• Recommended ESC: Summit 100HV (Pattern Flight Edition)
• Weight of glider: Up to 20kg
• Applications: Standard power for F3A (e.g bipe F3A)
