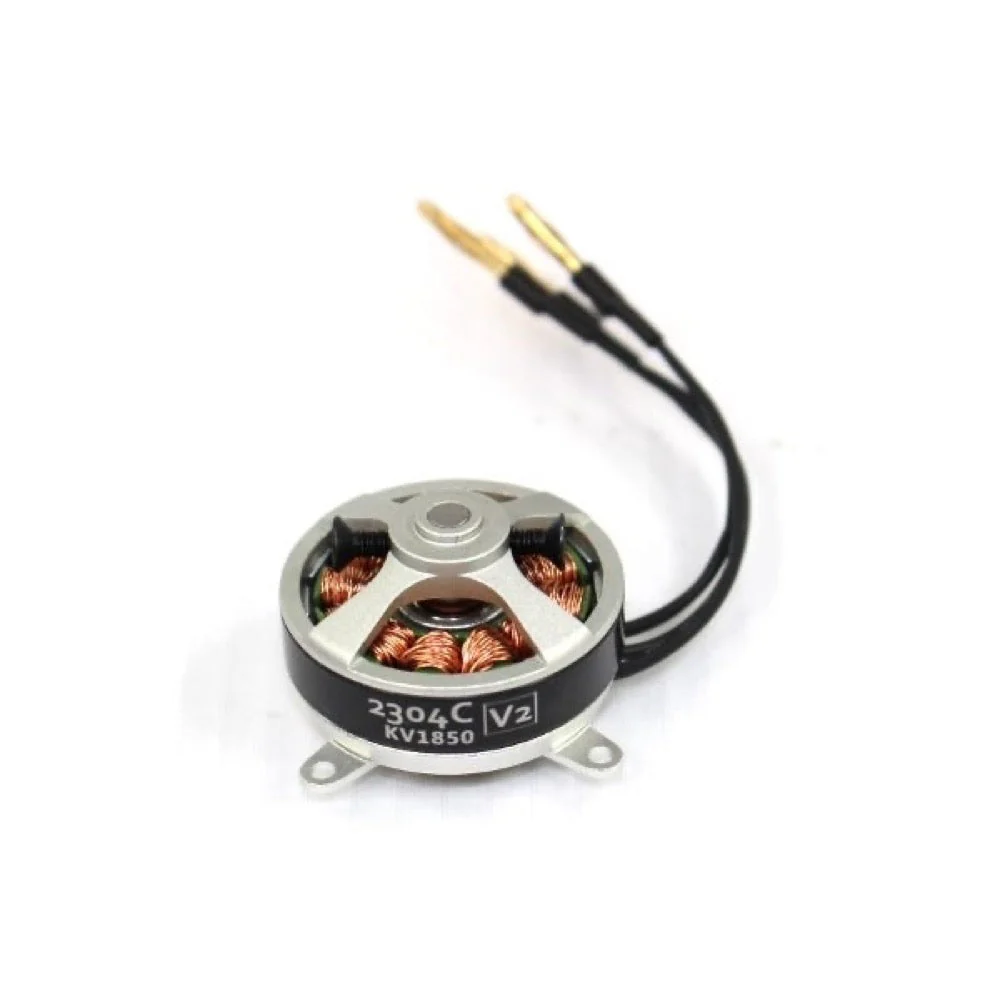

Dualsky DSXM51639 ECO 2304C 1850kv Brushless Motor

Product image 1

Dualsky DSXM51639 ECO 2304C 1850kv Brushless Motor

The 2304C ECO motor from Dualsky has 1850kv of power and is a great choice for indoor RC planes. This motor comes with propeller and motor mounts, in addition to gold plugs and screws.

Specification

  • KV: 1850
  • Turns: 18
  • Weight: 23
  • Dimensions: 28.5mm x 16.7mm
  • Slots & Poles: 12N14P
  • Ri (mOhm): 165
  • Io @ 10V (A): 0.7
  • No. of cells (LiPo): 43134
  • Max Efficiency Current (A): 7.6
  • Max. Burst Current (15S)[A]: 12
  • Max. Power(15S)[W]: 96
  • Max. Torque [N*M]: 0.074
  • Shaft diameter(mm): 3.175
  • Mountingholes pitch: 32
  • Input Connectors: GC2.0
  • Recommended ESC: XC-12-LITE or XC1210BA
  • Propeller:
    • 2S: 9 x 4SF, PT10 x 2.8i
    • 3S: 5.1 x 4.5E, 6 x 3E
  • Class: 100-200g airplane, e.g. indoor freestyle or EPP F3P trainer
$10.01

Original: $28.61

-65%
Dualsky DSXM51639 ECO 2304C 1850kv Brushless Motor—

$28.61

$10.01

Product Information

Shipping & Returns

Description

The 2304C ECO motor from Dualsky has 1850kv of power and is a great choice for indoor RC planes. This motor comes with propeller and motor mounts, in addition to gold plugs and screws.

Specification

  • KV: 1850
  • Turns: 18
  • Weight: 23
  • Dimensions: 28.5mm x 16.7mm
  • Slots & Poles: 12N14P
  • Ri (mOhm): 165
  • Io @ 10V (A): 0.7
  • No. of cells (LiPo): 43134
  • Max Efficiency Current (A): 7.6
  • Max. Burst Current (15S)[A]: 12
  • Max. Power(15S)[W]: 96
  • Max. Torque [N*M]: 0.074
  • Shaft diameter(mm): 3.175
  • Mountingholes pitch: 32
  • Input Connectors: GC2.0
  • Recommended ESC: XC-12-LITE or XC1210BA
  • Propeller:
    • 2S: 9 x 4SF, PT10 x 2.8i
    • 3S: 5.1 x 4.5E, 6 x 3E
  • Class: 100-200g airplane, e.g. indoor freestyle or EPP F3P trainer
